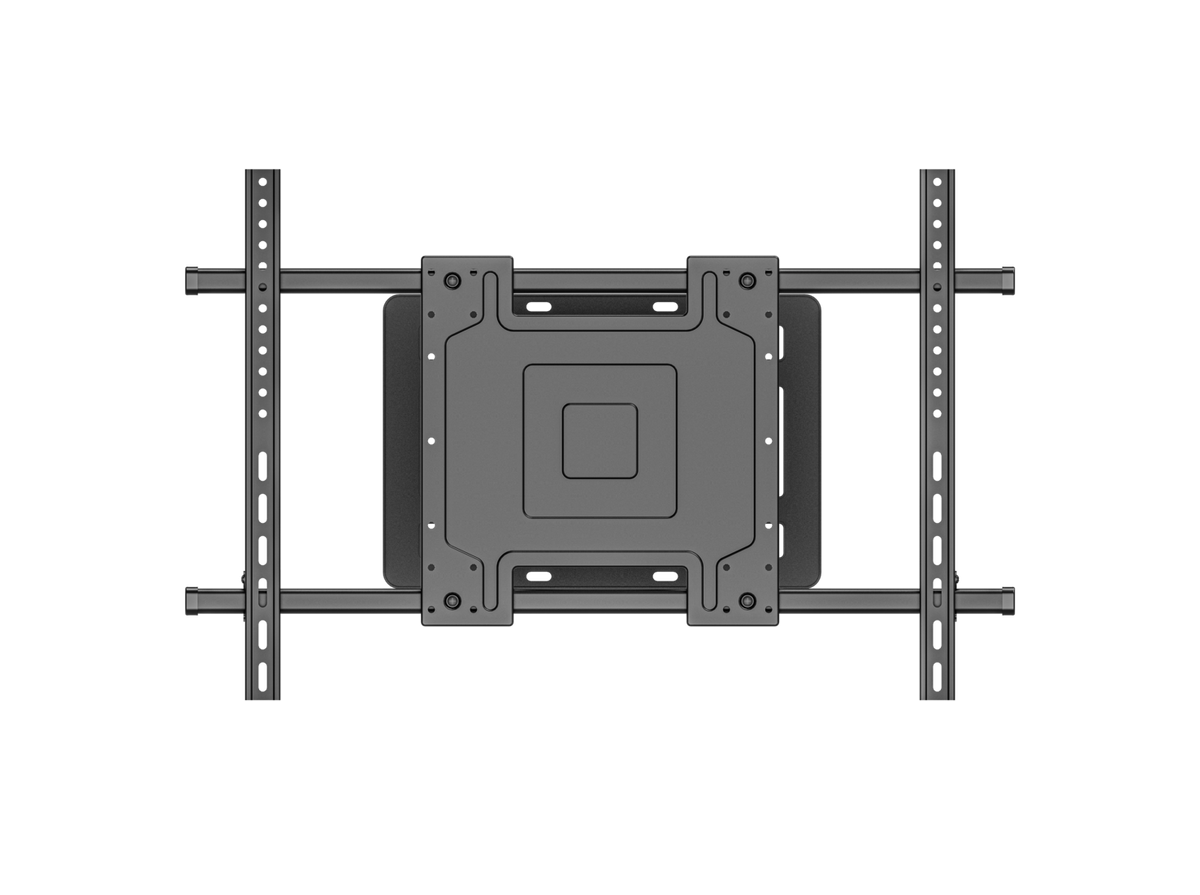

Wolff Mount TVB-132 Strong TV Wall Mount 100 inch
Tilgængelighed for afhentning kunne ikke indlæses
Wolff Mount TVB-132 Strong TV Wall Mount 100 inch
The Wolff Mount TVB-132 mounts your television on the wall while keeping floor and furniture space free. It is listed for screens of 50–100 inches and a maximum load of 100 kg.
This Wolff Mount TV wall mount uses the mounting compatibility stated below rather than a television brand-specific connection. It can suit compatible screens from brands such as Samsung, LG, Sony, Philips, Panasonic, TCL and Hisense, provided the exact device matches its VESA pattern, permitted weight and screen dimensions. “Universal” means suitable across compatible models; it does not mean every TV or monitor fits. Check the specific screen before ordering, including curved or OLED housings and recessed mounting points.
Features of TVB-132
Features and use
A heavy-duty articulated wall bracket for large displays. The extended arm creates space for turning the screen, and the bracket folds back to a shallow wall position.
- Functions: Swivel
- Material: Steel
- Finish: Black
- Wall reach: 72 cm
- Screen size: 50–100 inches
Compatibility and installation
Compare the screen’s mounting-hole pattern and weight with the listed specifications. Screen diagonal alone does not determine compatibility. Check connector clearance, the full movement range and the supporting wall, ceiling, desk or floor surface before installation.
Technical specifications
| Brand | Wolff Mount |
|---|---|
| Model | TVB-132 |
| Screen size | 50–100 inches |
| Maximum load | 100 kg |
| VESA patterns | 300 × 300, 400 × 400, 400 × 500, 400 × 600, 500 × 400, 500 × 500, 500 × 600, 600 × 400, 600 × 500, 600 × 600, 700 × 600, 800 × 600, 900 × 600 mm |
| Functions | Swivel |
| Colour | Black |
| Material | Steel |
| Minimum wall distance | 4 cm |
| Maximum wall distance | 72 cm |
| EAN | 8721161959250 |
Choose the viewing position
Think about where you watch most often and how the screen needs to sit in the room. A fixed TV bracket suits one viewing position, a tilting mount changes the vertical angle, and a full-motion wall mount can add extension and side-to-side movement. The features listed for this exact model determine which adjustments it provides. Check the folded position as well as the usable viewing position, particularly near furniture, a corner or a recessed media wall.
Measure before installation
Measure the horizontal and vertical spacing of the threaded holes on the back of the TV in millimetres. Compare that VESA pattern, the screen weight without its original stand and its overall dimensions with the specifications below. Check recessed fixing points, curved rear housings and access to HDMI and power sockets. Screen diagonal alone does not prove compatibility; the screen, bracket and mounting hardware must all match.
Wall fixing and cable clearance
The wall and fixing method must support the complete installation. Identify the structural material and use the appropriate fixings described in the installation instructions. A bracket load rating does not establish the strength of plasterboard, masonry or a timber wall. For a moving arm, keep cables free throughout the permitted travel and allow enough slack at the TV connections. Do not force an adjustment beyond its mechanical limits.
See the product details
Questions before ordering?
Our customer service team is based in the Netherlands and can help in Dutch and English. Have the Wolff Mount model code, your device model and installation measurements ready so we can check the details with you. Features and included components are specific to this product; use the technical information and product instructions when planning the installation.
